Overview

Purpose & Access

The EarthDEM Project provides high-resolution terrain maps for temperate and tropic regions. The resulting individual DSMs can be used to provide measurements of elevation change through time. The mosaic products offer a seamless, high-resolution reference model to serve as the foundation for further geospatial analysis and modeling.

Current licensing restrictions limit the release of non-polar DEMs derived from Maxar imagery to federal employees/contractors and federally-funded researchers. Eligibility will be verified by the NASA Commercial Smallsat Data Acquisition Program (CSDAP) before data access is granted. Once the data become available, apply for an account using the CSDAP account request form.

Source

EarthDEM products are constructed using hundreds of thousands of individual stereoscopic Digital Elevation Models (DEM) extracted from pairs of submeter (0.32 to 0.5 m) resolution Maxar satellite imagery obtained through the NGA EOCL license. Source imagery is from WorldView-1, WorldView-2, and WorldView-3, and a small number from GeoEye-1, acquired between 2009 and the present.

Domain

The EarthDEM project covers land surface between 60 degrees N and 60 degrees South excluding Alaska, Greenland, and the Kamchatka Peninsula. Polar data is openly available and can be found on the REMA and ArcticDEM pages.

New areas will be released as new data acquisition gives sufficient coverage. See the strip and mosaic tile status maps below for exact coverage areas.

The EarthDEM domain, shown in black, includes all land areas between -60°S and 60°N excluding certain areas already covered by ArcticDEM. Please note, coverage does not yet exist for all areas.

Processing

EarthDEM products are generated by applying fully automated, stereo auto-correlation techniques to overlapping pairs of high-resolution optical satellite images.

Using the open-source Surface Extraction from TIN-based Search-space Minimization (SETSM) software, developed by M.J. Noh and Ian Howat at the Ohio State University with support from the Ohio Supercomputer Center, stereoscopic images were processed to Digital Elevation Models using compute resources provided by the Blue Waters supercomputer located at the National Center for Supercomputing Applications at the University of Illinois at Urbana-Champaign. The Blue Waters sustained-petascale system is one of the most powerful supercomputers in the world. Without Blue Waters resources, DEM extraction at this scale would not be possible.

National Science Foundation funding supported the significant compute resources and development of the production pipeline and algorithms through earlier projects including ArcticDEM and REMA.

Output

Output DEMs are available as both original “strip” DEMs that preserve the original source imagery acquisition dates and temporal characteristics, as well as mosaic tiles that are compiled from multiple strips in a median-style mosaicking method that co-registers, filters, and integrates the source DEMs to reduce erroneous data and edge artifacts.

The time-dependent nature of the strip DEM files allows users to perform change detection analysis and to compare observations of topography data acquired in different seasons or years. The mosaic DEM tiles are assembled from multiple strip DEMs with the objective of providing a more consistent and comprehensive product over larger areas.

Documentation

Refer to these documents and guides for official EarthDEM information & citation.

DOCUMENTATION
GUIDES

Citation

Along with acknowledging the PGC, the EarthDEM dataset should be cited as follows.

DEM Mosaics:  Porter, Claire; Howat, Ian; Husby, Erik; Noh, Myoung-Jon; Khuvis, Samuel; Danish, Evan; Tomko, Karen; Gardiner, Judith; Negrete, Adelaide; Yadav, Bidhyananda; Klassen, James; Kelleher, Cole; Cloutier, Michael; Bakker, Jesse; Enos, Jeremy; Arnold, Galen; Bauer, Greg; Morin, Paul, 2022, “EarthDEM – Mosaics, Version 1”, https://doi.org/10.7910/DVN/MVOWY7, Harvard Dataverse, V1.

DEM Strips:  Porter, Claire; Howat, Ian; Husby, Erik; Noh, Myoung-Jon; Khuvis, Samuel; Danish, Evan; Tomko, Karen; Gardiner, Judith; Negrete, Adelaide; Yadav, Bidhyananda; Klassen, James; Kelleher, Cole; Cloutier, Michael; Bakker, Jesse; Enos, Jeremy; Arnold, Galen; Bauer, Greg; Morin, Paul, 2022, “EarthDEM – Strips, Version 1”, https://doi.org/10.7910/DVN/LHE9O7, Harvard Dataverse, V1

Current Release

Release 1

EarthDEM Release 1 includes limited areas to gather feedback on product format and usability. Products include 50 km x 50 km mosaic tiles and strip DEMs, both at 2-meter resolution. The sections below provide more detail of each product. Release 1 is an initial release intended for product assessment and community feedback. Future work will target improved water masking, DEM registration to a reference elevation dataset, and improved quality assessment tools.

For both strips and mosaics, an Esri shapefile is available as an index (footprint polygons), compatible with most GIS software. Unlike the REMA and ArcticDEM datasets, download links are not included as an attribute. Data will be available for download (after eligibility verification) through the NASA Smallsat Data Explorer.

EarthDEM Strips

Strip DEM files correspond to the overlapping area of the input stereoscopic imagery pair strips as they are collected by Maxars’s constellation of polar-orbiting satellites. Strip DEM dimensions will vary according to the satellite sensor that acquired the images and the off-nadir angle of collection. Most strips are between 13 km and 17 km in width, and 110 km and 120 km in length.

Strip DEM files are provided at 2-meter spatial resolution in 32-bit GeoTIFF format. The horizontal coordinate system is the UTM zone (WGS84 ellipsoid) in which the strip falls. Elevation units are meters and are relative to the WGS84 ellipsoid. No ground control or altimetry registration has been applied to the strips. Download the EarthDEM v1 strip DEM index shapefile to see the DEM extents, acquisition times, and other useful metadata.

EarthDEM Strip Coverage (Release 1).
STATISTICS
TOTAL 2M DEMs
21,858
2M AREA
13,009,000 km2
STRIP DEM COLLECTION FILE SIZE
12 TB
DOWNLOADS

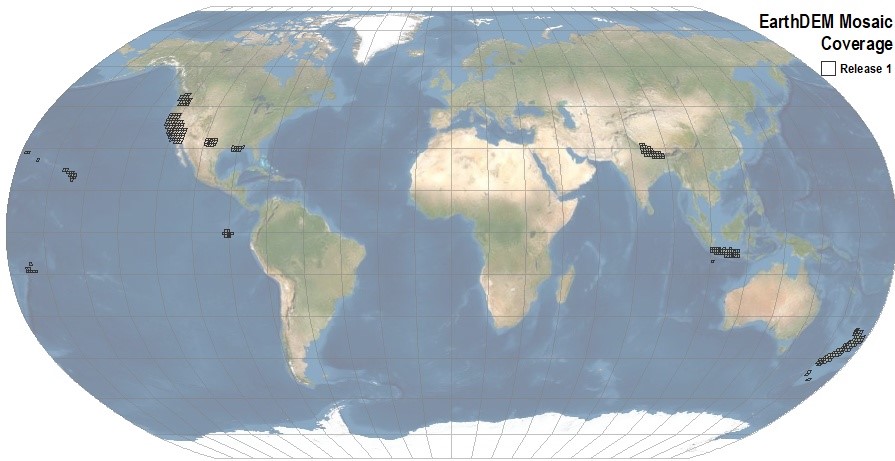

EarthDEM Mosaic

MOSAIC TILES

In addition to the individual time-stamped strips, EarthDEM includes a mosaic in 50 km x 50 km mosaic tiles at 2-meter resolution. A reduced-resolution, 10-meter resampled version is also available. Elevation units are meters and are relative to the WGS84 ellipsoid. No ground control or altimetry registration has been applied to the mosaics. Download the EarthDEM v1 2m tile DEM index shapefile to see the mosaic extents.

MOSAIC SCHEMA

2m mosaic tiles are in the local UTM projection. There is a different mosaic tiling scheme for each UTM zone, but each zone overlaps adjacent zones. Detailed mosaic tiling scheme information can be found in the EarthDEM documentation.

EarthDEM Mosaic UTM-based tiling scheme.
Methodology

DEM mosaic tiles are formed into 100km x 100 km tiles in the local UTM projection. The mosaic provides the median value of elevations from repeat strip DEMs, with filtering applied to remove outliers. The number of repeat DEMs, the median absolute deviation, and the time range of DEM acquisitions at each mosaic pixel are provided to identify potential areas of poor quality data and highlight rapidly changing features. The full tiles are subset to 50 x 50 km for distribution and feathered along their edges to remove any abrupt discontinuities. See the documentation for more information.

STATISTICS
TILES
1027
AREA
2,567,500 km2
2M TILE DEM COLLECTION FILE SIZE
2.6 TB
DOWNLOADS
